H.I.P Equipment

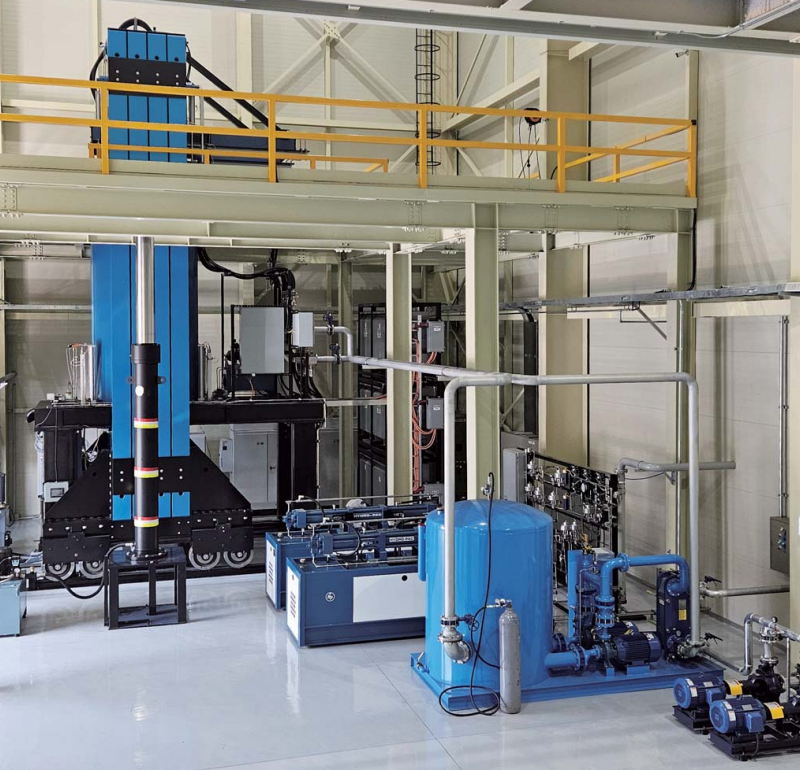

H.I.P(Hot Isostatic Press) Equipment
| Item | Specification |
| Maker | AIP (American Isostatic Presses) INC. USA |
| Vessel Size | ID 1219 x OD 1860 x H 3556 (mm) |
| Max. Working Range | D 1000 x H 2500 (mm) |
| Max. Working Temperature | 1350℃ (Molybdenum) / 1600℃ (Graphite) |
| Max. Pressure | 150MPa (22000Psi) |
| Working Fluid | Argon Gas |
| Heating Element | Molybdenum (6 ZONE) |
| Loading Type | Top Loading & Closure |

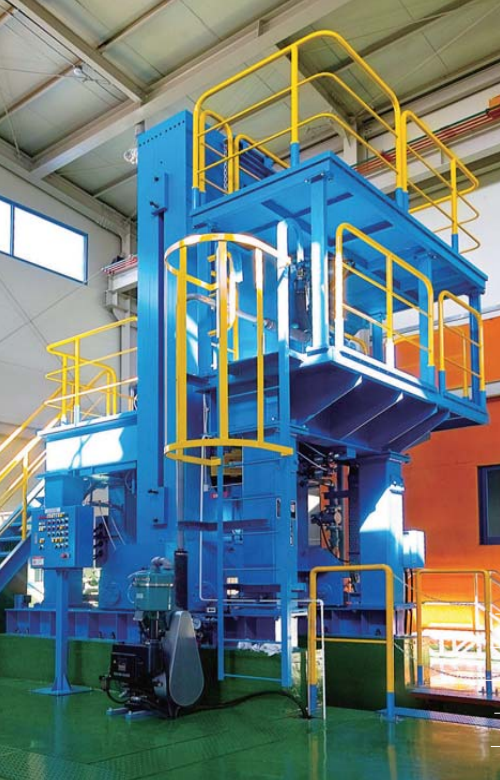

■ H.I.P Equipment
| Item | Specification |
| Maker | Kobe Steel, LTD. Japan |
| Furnace Size | D 600 x H 1300 (mm) |
| Max. Working Range | D 550 x H 1300 (mm) |
| Max. Working Temperature | 1500℃ |
| Max. Pressure | 14228Psi (98.1MPa) |
| Working Fluid | Argon Gas |
| Heating Element | Graphite Heater (3 ZONE) |
| Loading Type | Bottom Loading & Closure |
■ H.I.P Equipment
| Item | Specification |
| Maker | Autoclave Engineers INC. USA |
| Vessel Size | OD 831 x ID 559 x H 2388 (mm) |
| Max. Working Range | D 440 x H 1200 (mm) |
| Max. Working Temperature | 1400℃ |
| Max. Pressure | 15000Psi (103.4MPa) |
| Working Fluid | Argon Gas |
| Heating Element | SiC Heater 21EA (3 ZONE) |
| Loading Type | Top Loading & Closure |
■ H.I.P Process
Loading
→
Evacuation
→
Gas Pressurizing
Heating
→
Cooling
→
Gas Discharging
Unloading

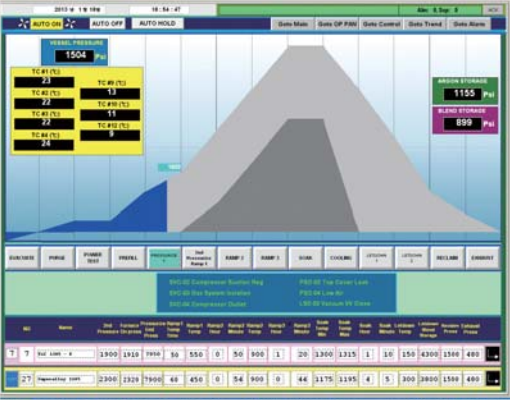

All H.I.P Processes are proceed automatically in accordance with customer's demands and we are monitoring the temperature and pressure through the program in real time.
